Solenoid Module
SOLENOID CONNECTION MODULE: Connects a NORMALLY CLOSED line voltage solenoid valve tothe controller.
On a non-monitored (no UV sensor) system, the solenoid will only close on a lamp failure error.
On a monitored system (with UV sensor), the solenoid is closed when the UV level drops below 50%. Also note that in cases where emergency use of untreated water is required, the controller can be placed into a manual override mode allowing for the flow of water in an alarm condition.
- Description
- Documents

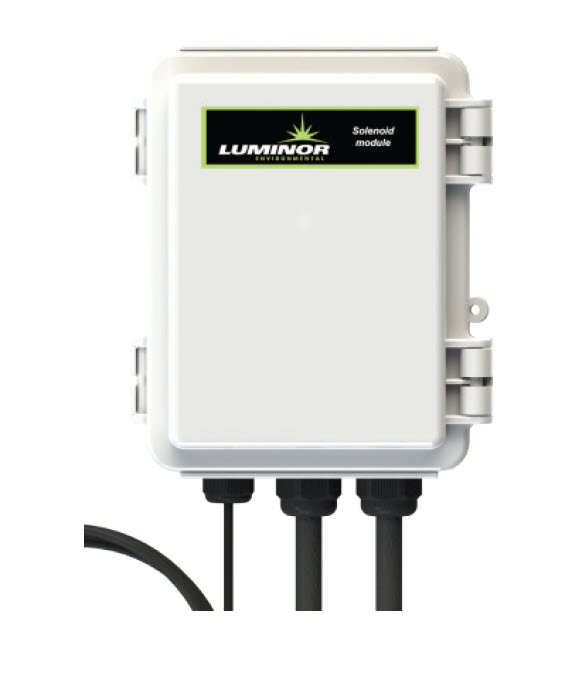

Solenoid Module 110V for Luminor UV Sterilizer (Order Solenoid Valve Separately)
Includes cable for plug-and-play installation.
Solenoid connection module for BLACKCOMB5.1 and BLACKCOMB6.1 products. in 110V./50-60Hz., comes with North American (Nema 5-15), 3-prong grounded 3' cord

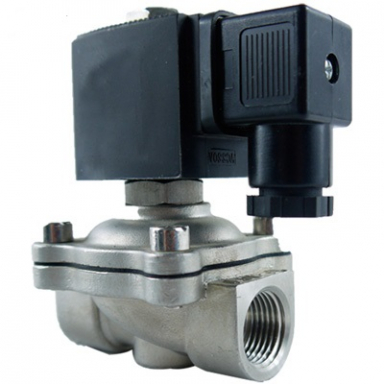

SOLENOID CONNECTION MODULE: Connects a NORMALLY CLOSED line voltage solenoid valve (not included) to the controller.
Maximum contact rating is 240VAC (50-60Hz) / 30VDC / 2A. On a non-monitored system with no UV sensor,the solenoid will only close on a lamp failure error.
On a monitored system with a sensor, the solenoid is closed when the UV level drops below 50%.
Also note that in cases where emergency use of untreated water is required, the controller can be placed into a manual override mode allowing for the flow of water in an alarm condition.
Manufacturer: Luminor
Manufacturer #: RS-B2.5
