Soda Ash Systems

Very Low pH? Blue stains from acid water? Are pinhole leaks threatening to destroy your house with expensive leaks? Now you can eliminate corrosion of copper and galvanized pipes, fixtures & appliances without raising the hardness of water. Stop pin hole leaks. Stop blue green stains on fixtures! Works great for very low pH in the range of 4.5 to 6.0. Safely raises the pH to the 7.0 to 8.0 range. Soda ash (sodium carbonate) is a powder that is mixed with water and injected into the water pipe before the pressure tank to raise the pH of water. By dissolving 2 to 3 lbs of soda per gallon of water and injecting this solution at a rate of 100 ppm to 200 ppm, the pH will rise to the 7.0—8.0 range, assuming a typical well water flow rate of 5 to 30 gallons per minute. Our standard soda ash pump is the J-PRO-22 which can pump 22 gallons of solution in 24 hours of the well pump running.	Cut-away of customers' corroded copper pipe:

THREE OPTIONS TO TURN ON AND OFF SODA ASH PUMP AUTOMATICALLY

Option 1: WIRE TO WELL PUMP PRESSURE SWITCH

Wire to your well's pressure switch. This is the lowest cost method. Simply install a dedicated wall outler, that is wired in to the existing pressure switch and powered up whenever the well pump turns on (and off)

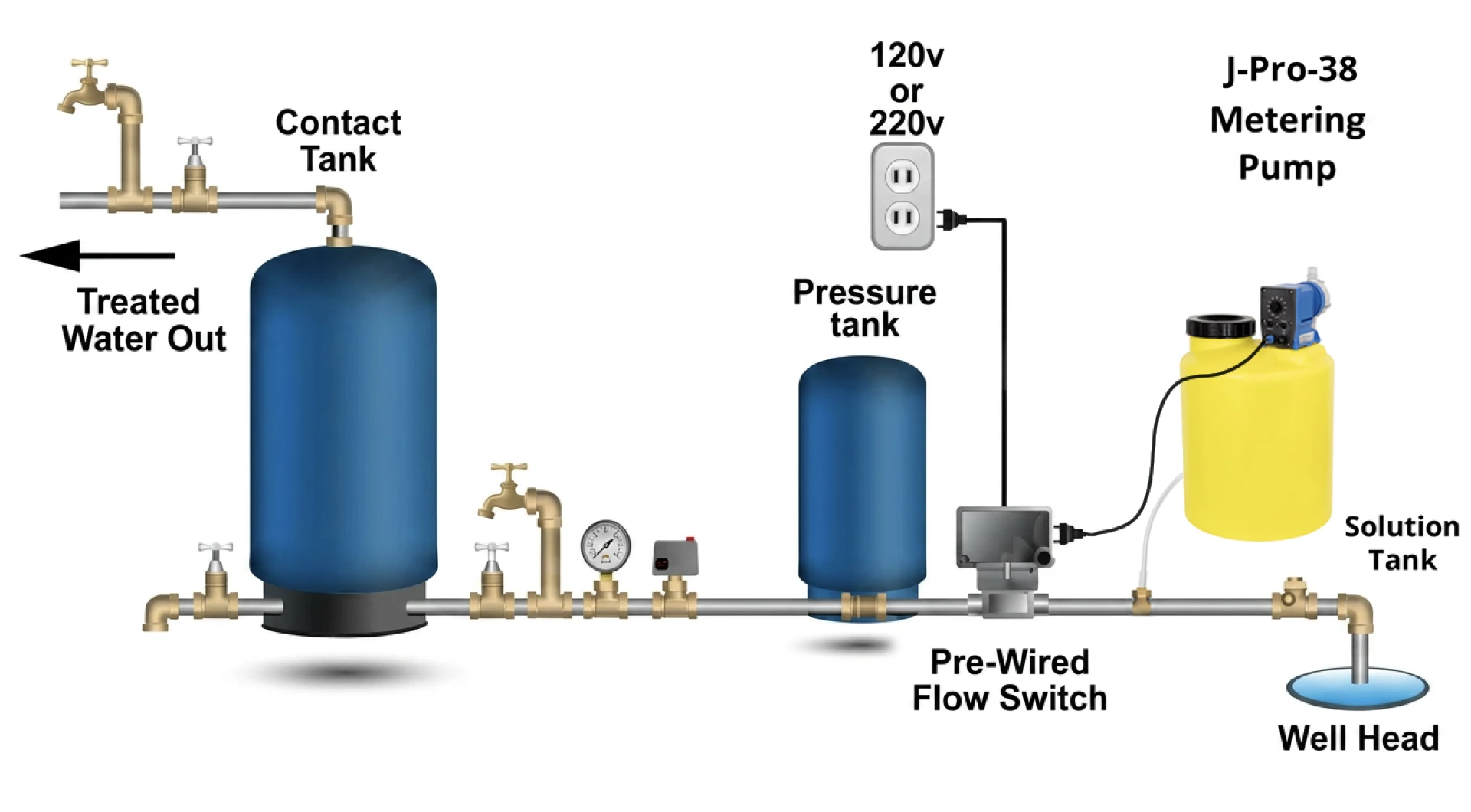

Option 2: PRE-WIRED FLOW SWITCH

Install a flow switch. This makes it fast and easy. No electrical wiring to do and any plumber, or person familiar with basic plumbing can install the chlorinator. No electrician required or electrical wiring to do.

Simply install the pre-wired flow switch. Plug the flow switch into a standard 120v wall outlet. Then, plug the chlorinator pump into the electrical outlet on the flow switch. Whenever there is flow, the metering pump will then turn on.

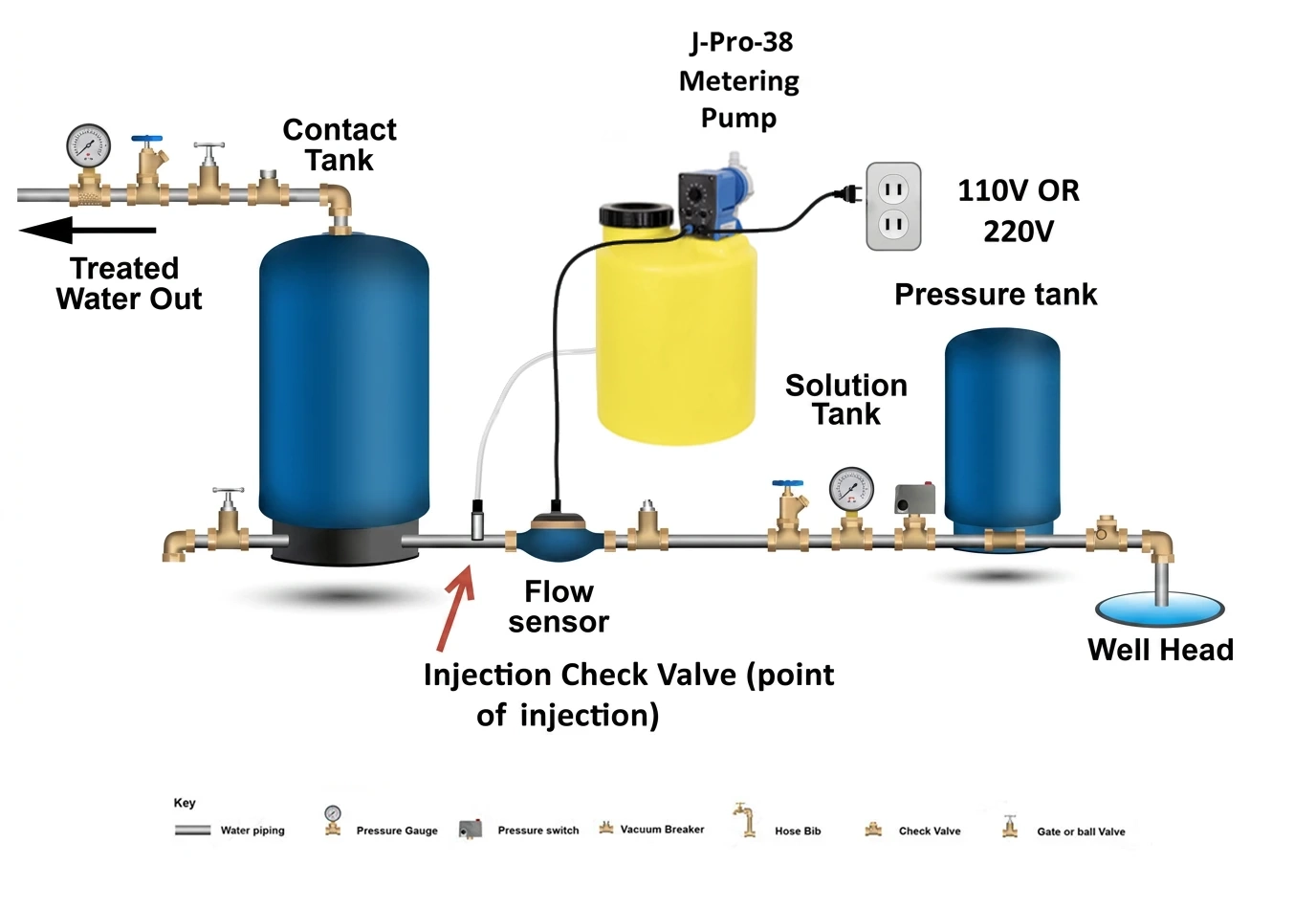

Option 3: PROPORTIONAL-FEED FLOW METER TYPE

Use a proportional-fee type of installation. This is also very easy to set up and requires no electrical wiring or electrician to install the system. A flow meter is installed which tursn on and off the chlorinator pump based on the flow of water.

As soon as there is flow of water through the meter, the chlorinator pump will pump faster or slower based on the amount of water flowing through the flow meter

Simply install the flow meter and connect the cable to the chlorinator pump. Plug the chlorinator pump into a standard 120V wall outlet. When the water flows, the pump will pump more or less chlorine based on how fast the water is flowing.

NOTE: Unlike Option 1 and Option 2, there is no need ot install the injection check valve before your pressure tank. With the proportional-feed type of installation, the injection check valve can be installed AFTER the pressure if desired.
