• Model LFY-I-4J heavy-duty oxygen separator makes use of advanced principle of physical oxygen generation and directly separates oxygen and nitrogen in air under normal temperature through the pressure swing absorption (PSA) principle.
• This oxygen generator generates oxygen of high purity for continuous oxygen supply.
• The power supply of this model is 110V 60hz.
• The unit is light weight, has low noise, stable performance, easy to operate and all gas circuit is controlled by low pressure system.
• NOTE: While we do have some glass blowing operations use this model, you may need the larger model depending on your glass blowing operation

Features:

• Gas flow meter for quick check of operation

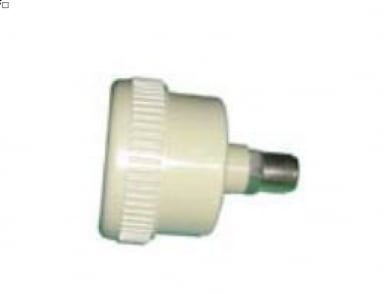

• Easy change external air filter.
• Compact small footprint
• Flow control valve for precise control of oxygen

Specifications:

• Oxygen Flow: 8 SCFH
• Oxygen Delivery Pressure: 10 PSI-12 PSI
• Dimension: 14" x 12" x 20"
• Power Supply: 110v/60Hz
• Oxygen Concentration: 93%
• Noise: < 50dB
• Power Consumption: 3.18 Amps
• Temperature operating range: 41F to 104F  (5C to 40C)
• Relative humidity: < 80%

.

1 Year Warranty

Manufacturer: LongFei Group

Manufacturer #: LFY-I-4J-110V

Download Installation Guide
