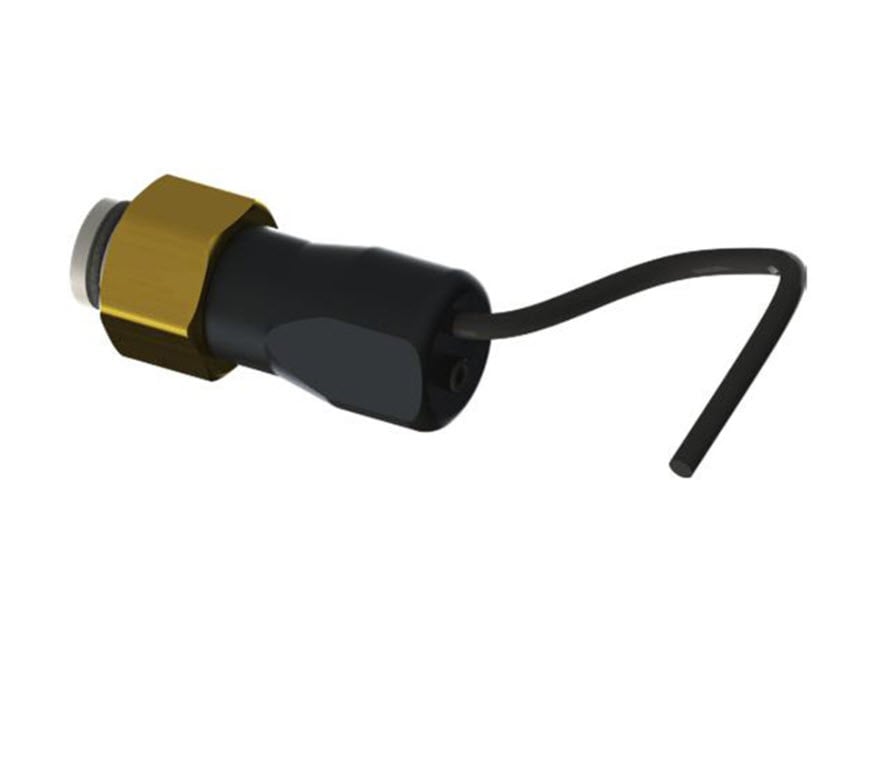

Luminor RS-B2.5 Replacement UV Sensor Module
Overview
UV Sensor for Blackcomb UV Sterilizers
This product is a Luminor RS-B2.5 replacement UV sensor for all BLACKCOMB 6.1 residential products with a 2 1/2" diameter chamber (LB5/LB6 -06, -10, -15 series, LB6-021, LB6-031, LB6-061, LB6-101, LB6-151, and all 12V, 230V models & NSF Class B).
The UV sensor module allows for a UV sensor upgrade to all BLACKCOMB 5.1 systems (or replacement on all BLACKCOMB 6.1 systems). All BLACKCOMB 5.1 systems come supplied with a built-in expandability port.
On systems with the UV monitor, the system will display the same screens as on the BLACK-COMB5.1, except the UV Intensity replaces the home screen. The UV Intensity screen displays the level of UV light detected by the sensor.
UV intensity can be affected by poor water quality, scaling on the quartz sleeve and/or sensor, lamp failure, or lamp expiration. The following screens show the UV Intensity dropping.
- Description
- Documents
UV Sensor for Blackcomb UV Sterilizers
Includes cable for plug-and-play installation.
This product is a Luminor RS-B2.5 replacement UV sensor for all BLACKCOMB 6.1 residential products with a 2 1/2" diameter chamber (LB5/LB6 -06, -10, -15 series, LB6-021, LB6-031, LB6-061, LB6-101, LB6-151, and all 12V, 230V models & NSF Class B).
The UV sensor module allows for a UV sensor upgrade to all BLACKCOMB 5.1 systems (or replacement on all BLACKCOMB 6.1 systems). All BLACKCOMB 5.1 systems come supplied with a built-in expandability port.
On systems with the UV monitor, the system will display the same screens as on the BLACK-COMB5.1, except the UV Intensity replaces the home screen. The UV Intensity screen displays the level of UV light detected by the sensor.
UV intensity can be affected by poor water quality, scaling on the quartz sleeve and/or sensor, lamp failure, or lamp expiration. The following screens show the UV Intensity dropping.
Remove the Teflon glow plug from the port and affix the UV sensor module. Plug the sensor into the controller's IEP (infinite expandability port) and restart the system. The system will now monitor the UV intensity the ultraviolet lamps give.
Features
- 254 nm Teflon-based UV sensor with 4-20 mA output capabilities
- "Free floating" design eliminates cable twisting as in competitive systems
- Keyed design for optimum sensor positioning
- Integral IEP (infinite expandability port) for module interfacing
- Watertight design with full one-year, "no-hassle" warranty
Equipment Used In
- Luminor Blackcomb LB6-021
- Luminor Blackcomb LB6-031
- Luminor Blackcomb LB6-061
- Luminor Blackcomb LB6-101
- Luminor Blackcomb LB6-151
About Luminor Environmental
Based in Canada, Luminor Environmental specializes in ultraviolet water treatment solutions for residential, light commercial, commercial/industrial, and municipal applications. The company strives to provide its customers with industry-leading service, support, product, and warranty. Luminor distributes UV water purification solutions to over 55 countries with hundreds of thousands of installations.
Manufacturer: Luminor
Manufacturer #: RS-B2.5
