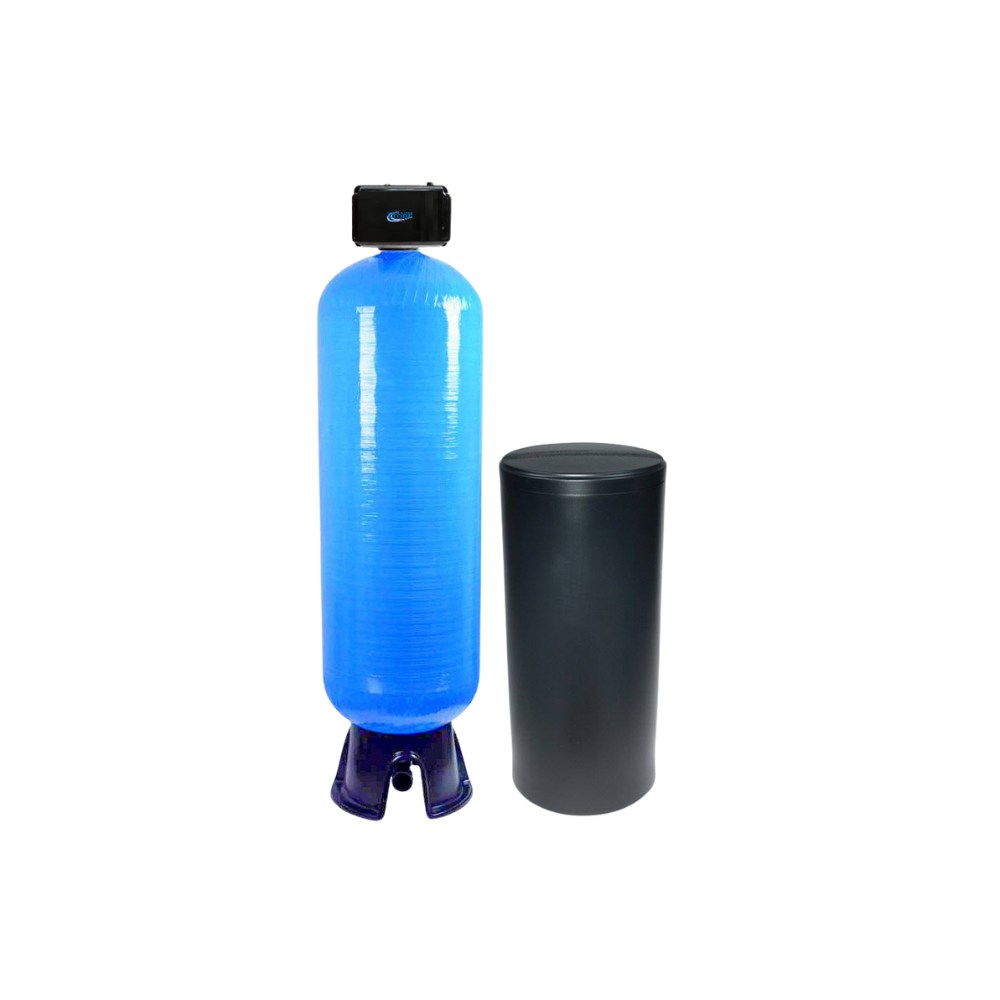

Commercial Water Softener 9510 300K 10.0 CF
Code: WS006100
$4,945.00
$8,541.00 List Price
Overview
Commercial Water Softener System Metered On-Demand 9510 Saves Salt & Water 1-1/2" Pipe Size
- Heavy-duty Commercial Water Softening System for high flow rates, low pressure drop.
- Softens water, eliminates water hardness for commercial applications
- Commercial 9510 Control valve includes flow sensor for metered flow regeneration.
- On-Demand regeneration saves salt and water.
- 9510 control valve features fully adjustable backwash and rinse cycles, saving water and allowing maximized performance.
- NSF certified control valve, resin and softener tank
- Description
- Specs
- Warranty
- Documents
Commercial Water Softener System Metered On-Demand 9510 Saves Salt & Water 1-1/2" Pipe Size with large commercial 24" x 40" Brine Tank
- Heavy-duty Commercial Water Softening System for high flow rates, low pressure drop.
- Includes 30" x 48" brine tank. Holds 700 lbs of salt
- Softens water, eliminates water hardness for commercial applications
- Commercial 9510 Control valve includes flow sensor for metered flow regeneration.
- On-Demand regeneration saves salt and water.
- 9510 control valve features fully adjustable backwash and rinse cycles, saving water and allowing maximized performance.
- certified control valve, resin and softener tank
- Excellent performance on both chlorinated and non-chlorinated water
- certified filter tank with one piece seamless polyester construction for long life
- WQA/ Certified 8% cross-linked Softener Resin lasts for many years and is chlorine resistant.
- Built-in relays for optional control of pumps, solenoid valves are standard.
- Non-corrosive high-tech material construction
- User friendly LCD display, showing time of day, regeneration mode, and gallons remaining
- Totalizer function tracks total amount of water treated
- Meter immediate, meter delayed, meter with day override, and calendar clock modes included
- Multiple Tank Feature: softener tanks can be installed together and interlock controller function is available, contact us for more information..
Benefits
- High quality salt-efficient water softener: eliminates or dramatically reduces white spotting on fixtures and dishware
- Prevents scale and calcium build-up inside pipes, water heaters, fixtures, and appliances
- Excellent water softener for commercial laundries, hotels, resorts, commercial applications, estates
Includes
- Canature 95 Control Valve Certified
- 24" x 65" one piece certified Tank
- 10 cubic foot high grade softener resin
- Filter gravel for underbedding of resin
- 30" x 48" brine tank
Specifications
- Max water temperature recommended: 100F
- Operating Pressure: 20 - 125 PSI
- Voltage: Input 120-240V 50/60hz. Output 12V 650mA. Uses less than 1 AMP.
- Pipe size 1-1/2" NPT
Sizing Guide
| Cubic Feet of Resin Included | Grains Capacity | Peak Flow Rate | Backwash Flow Rate | Dimensions Softener Tank | Dimensions Brine Tank |
| 3.0 CF | 90K | 24 GPM | 7.0 GPM | Diameter: 14" Height: 74" | Diameter: 18" Height: 40" |
| 5.0 CF | 150K | 33 GPM | 8.0 GPM | Diameter: 18" Height: 74" | Diameter: 18" Height: 40" |
| 7.0 CF | 210K | 50 GPM | 11 GPM | Diameter: 21" Height: 80" | Diameter: 24" Height: 40" |
| 10.0 CF | 300K | 50 GPM | 17 GPM | Diameter: 24" Height: 85" | Diameter: 24" Height: 40" |
Technical Specifications
- Max pressure recommended: 100psi
- Max temperature recommended: 100�F
- Voltage 120-240V 50/60hz
- Pipe size includes 1" and 1-1/2" NPT connectors
- "CF" refers to the amount of softening resin included in cubic feet.
- Pressure loss is 25 PSI at maximum peak flow rate
- Flow Rate: Refers to maximum recommended Gallons Per Minute ("GPM") which means how fast the water is flowing.
- "Backwash Flow Rate" is the minimum flow rate in gallons per minute ("GPM") that is recommended for that size filter to operate properly.
- Resin type: WQA/ Certified 8% Cross-Linked High Capacity Ion Exchange Resin
