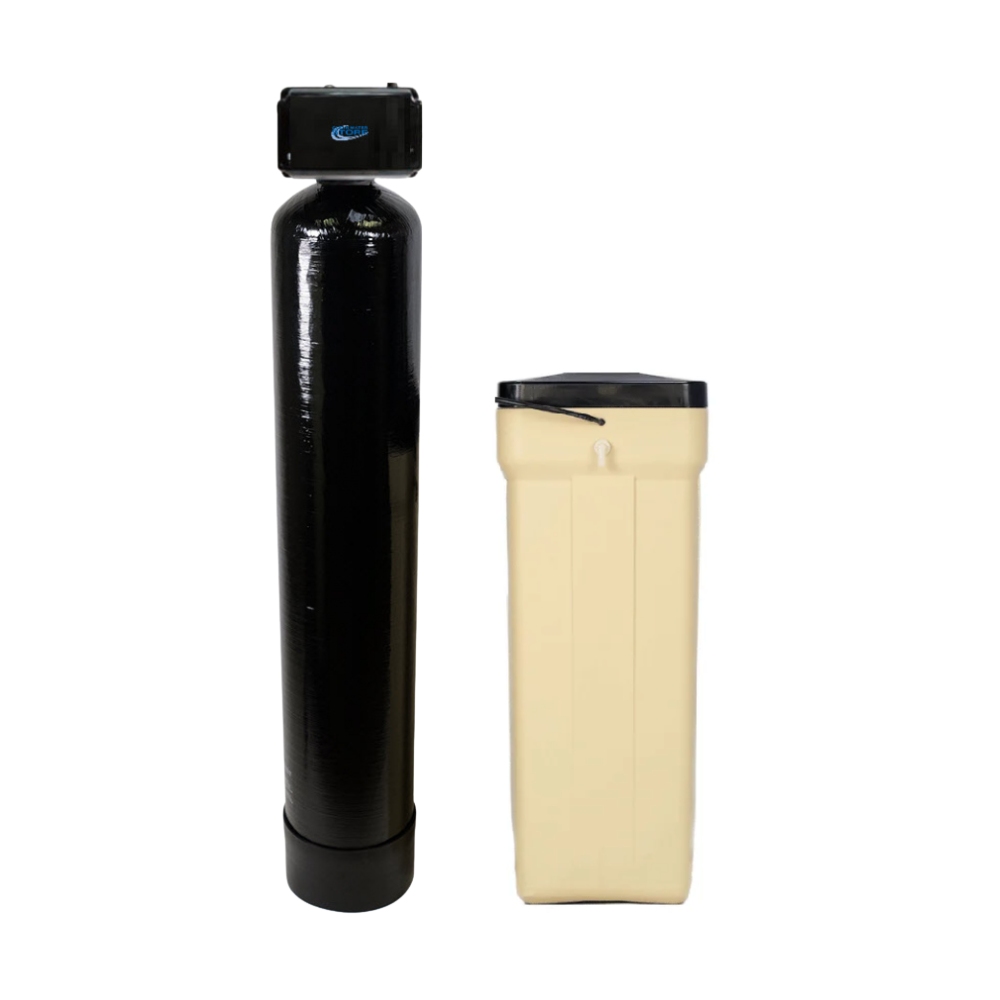

Commercial 9510 Softeners 1.5 Inch Pipe Size
Sizing Guide
| Cubic Feet of Resin Included | Grains Capacity | Peak Flow Rate | Backwash Flow Rate | Dimensions Softener Tank | Dimensions Brine Tank |
| 3.0 CF | 90K | 24 GPM | 7.0 GPM | Diameter: 14" Height: 74" | Diameter: 18" Height: 40" |
| 5.0 CF | 150K | 33 GPM | 8.0 GPM | Diameter: 18" Height: 74" | Diameter: 18" Height: 40" |
| 7.0 CF | 210K | 35 GPM | 11 GPM | Diameter: 21" Height: 80" | Diameter: 24" Height: 40" |
| 10.0 CF | 300K | 38 GPM | 17 GPM | Diameter: 24" Height: 85" | Diameter: 24" Height: 40" |
Technical Specifications
- Operating Pressure: 20 - 125 PSI
- Max temperature recommended: 100F
- Voltage: Input 120-240V 50/60hz. Output 12V 650mA. Uses less than 1 AMP.
- Pipe size: 1-1/2" NPT connectors
- "CF" refers to the amount of softening resin included in cubic feet.
- Pressure loss is 25 PSI at maximum peak flow rate
- Flow Rate: Refers to maximum recommended Gallons Per Minute ("GPM") which means how fast the water is flowing.
- "Backwash Flow Rate" is the minimum flow rate in gallons per minute ("GPM") that is recommended for that size filter to operate properly.
- Resin type: WQA/ Certified 8% Cross-Linked High Capacity Ion Exchange Resin
