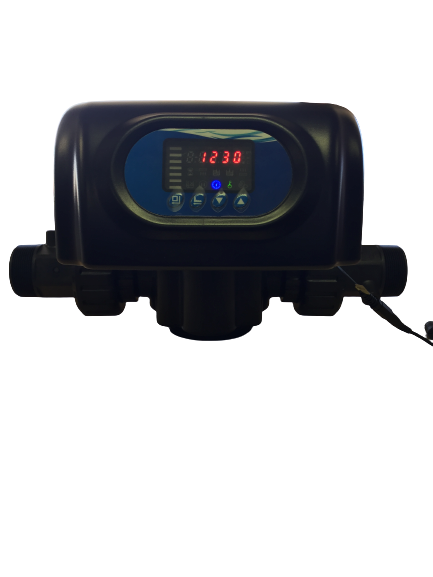

7500-C Commercial Filter Control Valve 2"
- Description
- Specs
- Warranty
- Documents
- High Flow 2" Ceramic Disc Valve for 4" filter tank opening
- Distributor tube opening fits 1-1/2" distributor tubes
- Unions included. 2" In - Out - Drain 2" NPT.
- NOTE: indoor use only or protect from UV light and rain.
- The moving parts of the 7500-C series control valve feature super hard ceramic and graphite meshing surfaces for exacting tolerances, eliminating the need for O-rings or gaskets.
- Easily programmable, multiple sequence set-up features, regeneration modes and interlocking capabilities.
- Backwashes based on time (days of the week). Fully automatic and adjustable.
- No hard-water-bypass. During regeneration water will not flow through to piping system.
- Manual backwash knob, makes it easy to manually advance control valve for backwash and rinse if ever desired.
- More efficient backwashes that use less water and require backwashing less frequently
- Ceramic disc backwash control valve lasts years longer than standard piston type control valves and backwash over 150,000 cycles.
- Corrosion Proof: Resistant to sand, caustics, and acids.
- Automatic program recall after power outage and maximum day regeneration functions
- Resists Abrasion: Patented ceramic discs are corrosion and abrasion resistant for superior durability and longevity.
- Exceptional High Flow Rate with noticeable noise reduction during regeneration.
- Voltage 110v-230V Power Adapter. Control valve 12VDC. Uses less than 20 watts of power.
- 5 Year Warranty
- Built-in relays and control circuit to control external pumps and solenoid valves as well as external control.
- NOTE: Does NOT include Drain Line Flow Control. A drain line flow control is used on the drain the limit the flow rate and would be added separatly depening on the size of the tank and the type of filter media used. You can also use a 1" gate valve or ball valve on the drain line to adjust flow rate. If you have questions about this please call our support team or email them at [email protected].
.
5 Year Warranty
Manufacturer: Hankscraft Runxin
Manufacturer #: V1002990
